Pneumatic Fitting Pipe Connector Tube Air Quick Fittings Water Push In Hose Couping 4mm 6mm 8mm 10mm 12mm PU PY PK PM PZA HVFF

Pneumatic Fitting Pipe Connector Tube Air Quick Fittings Water Push In Hose Couping 4mm 6mm 8mm 10mm 12mm PU PY PK PM PZA HVFF

Short Description:

Specification:

Model: PU / PV / PK / PE / PY / PM / SA / HVFF size: 4 6 8 10 12mm Fluid Type: Air / Vacuum Operating Presure 0~10. 2kgf/cm2 (0~1.0Mpa) Negative Pressure: -750mmhg (10 Torr) Operating Temperature Range: 0~60C Fit For Tube Material: PU / Nylon ,Polyurethane Quick Fitting Material: Plastic Package Content: 1 Pcs Quick Fittings


Product Detail

Product Tags

Basic info

Size

4 /6 /8 /10 /12mm

Model

PU / PV / PK / PE / PY / PM / SA / HVFF

Fluid Type

Air / Vacuum

Operating Pressure

0~10. 2kgf/ (0~1.0Mpa)

Negative Pressure

-750mmhg (10 Torr)

Operating Temperature Range

0~60°C

Fit For Tube Material

PU / Nylon ,Polyurethane

Feature

•    360 degree rotation, flexible

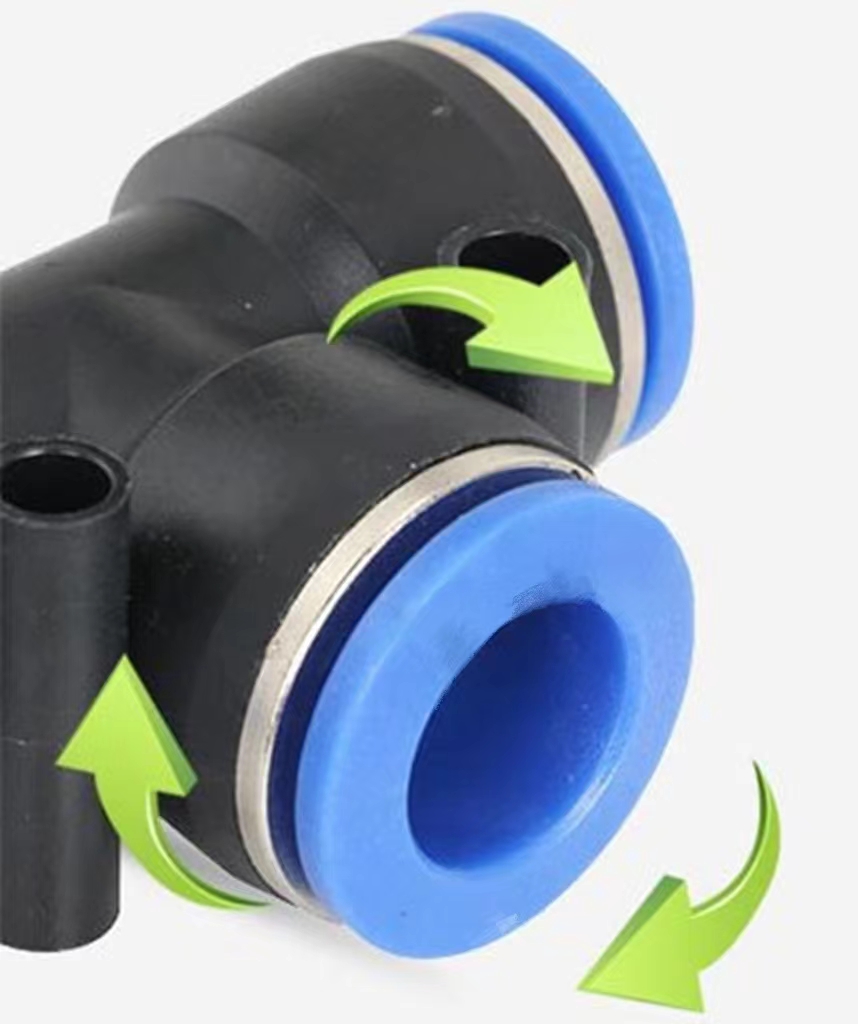

微信图片_20220420193322

The plastic pipe body can rotate 360

degrees, can be re read and pulled

out for many times,and has a long

service life.



•    Oval release ring

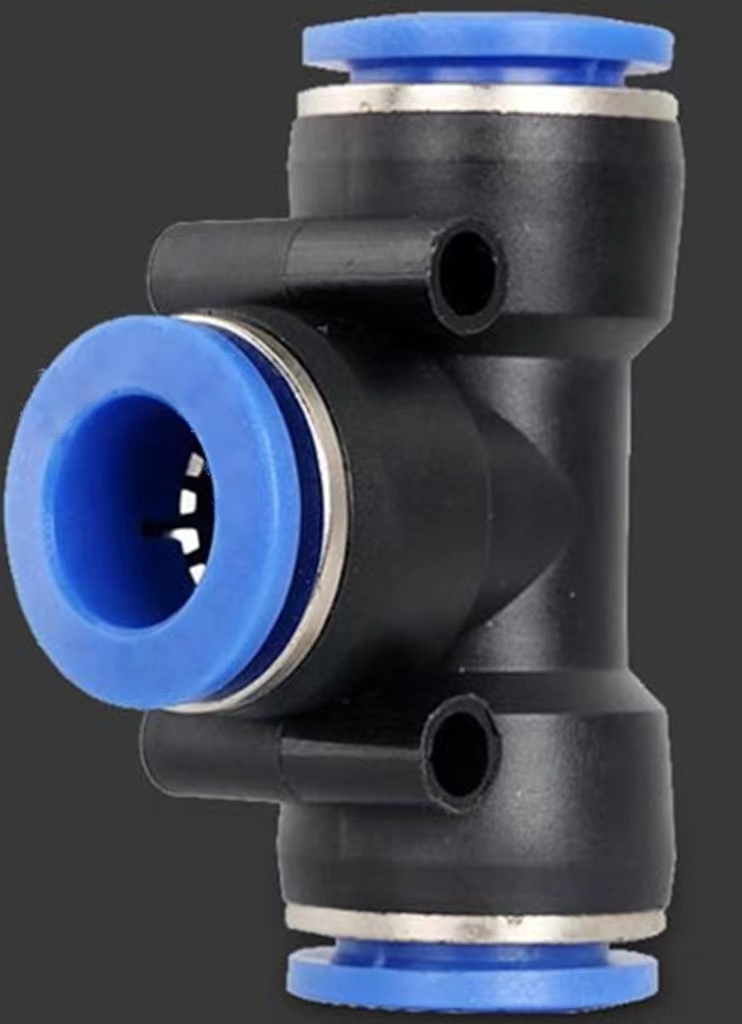

微信图片_20220420193354

The release ring adopts oval

design,which is more labor

-saving and convenient for

disassembly.

•    Good sealing performance

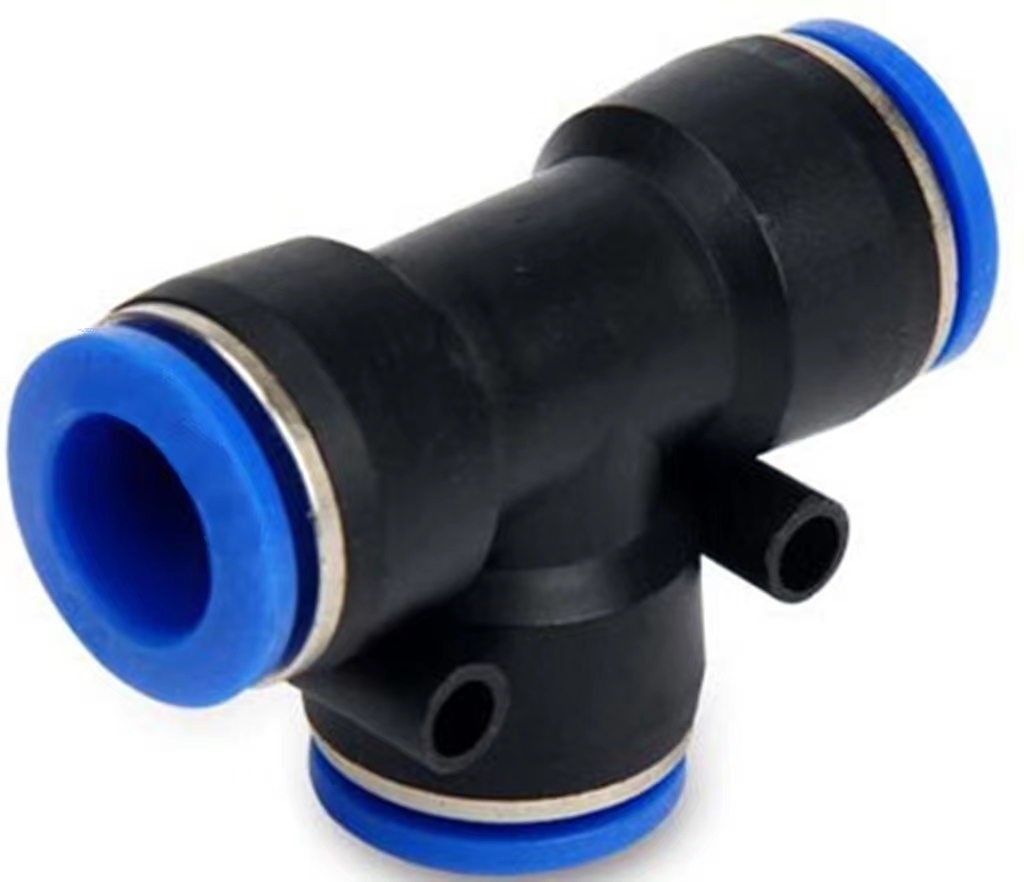

微信图片_20220420193402



All pipe threads are pre coated with polytetrafluoroethylene leak proof adhesive, with good sealing performance.

Product analysis

微信图片_20220420143910

   Trip

When the release is pressed, the pipe caught by the locking circlip can be released. The circular release is firm, durable and reliable



 Tighten the locking circlip   ♦

High quality material, suitable for nylon pipe

and polyurethane pipe,with large grasping force



微信图片_20220420144042
微信图片_20220420144056

♦ Locking sleeve

The upper end is tightly connected with the silver ring, the locking circlip is fixed, and the lower end is buckled with the sealing ring



Seal ring  ♦

The special groove ensures the tightness of pipe insertion

and reduces the insertion resistance at the same time

微信图片_20220420144116

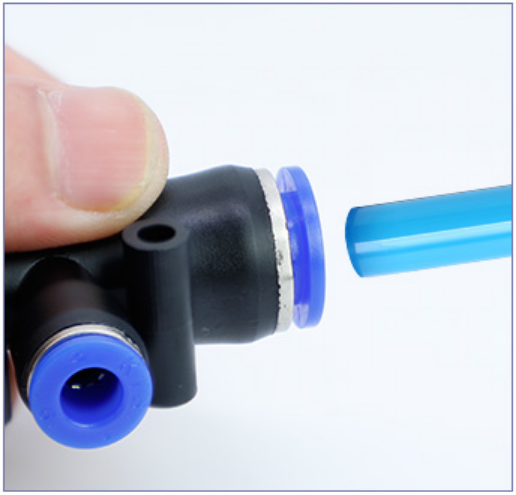

Installation and disassembly instructions of air pipe

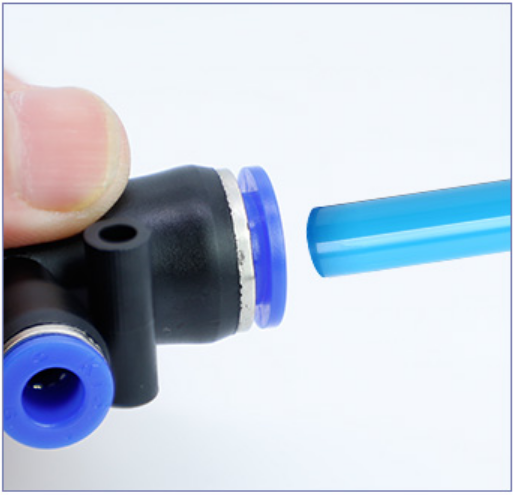

1. Cut the air pipe flat (avoid tripping, and the air pipe is stuck more firmly)

2. Insert the trachea into the release ring with appropriate strength

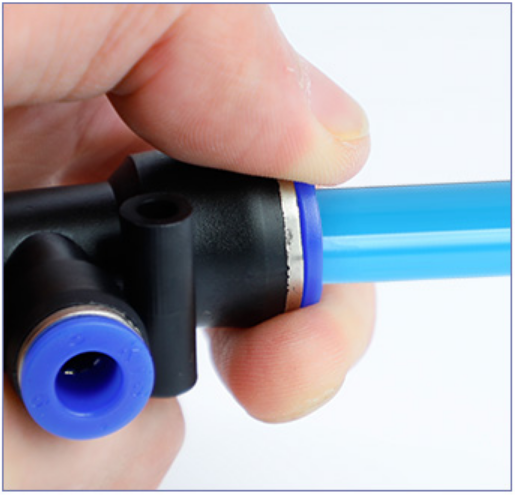

3. The circlip automatically blocks the air pipe

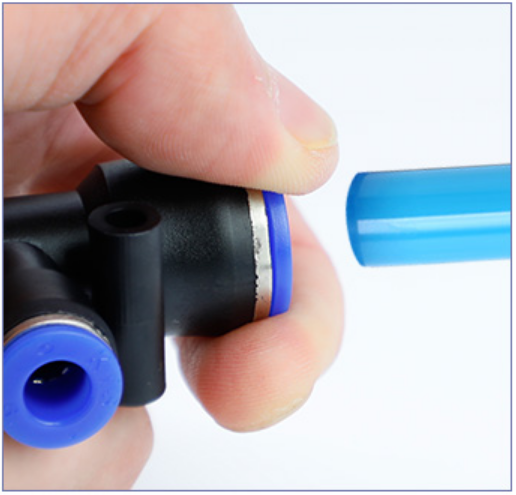

1. Press the release ring with both hands

2. The circlip structure is automatically released, and the air pipe can be easily pulled out by hand

About us

Products Range

1, Injection molds & Plastic parts

Material: PP, ABS, PC, ABS+PC, Nylon, delrin (POM), PMMA, AS, PS, PE, PET, PVC, PEEK, etc; GF added material (ABS+GF, PA66+GF, PA666+GF); Rubber like material (TPE, PU, NBR, silicone, NBR+TPE etc)

Special specification available depend on different material and requirement: scracth resistant, flame resistant, UV resistant, food grade, chemical resistant, etc.
Sizes: All size and thickness available.
Process: Injection molding, overmolding.
Surface finish: texture (VDI/MT standard, or made to client's sample), polished (high polish, mirror polish), smooth, painting, powder coating etc.
Colors: clear (standard clear or high optical clear), semi-transparent, other colors (pantone code #, or made to client's sample).
Application: household commodities, electronics, car parts OME & Performance, motorcycles, bikes, machinery parts, hospital, cosmetics, Military and Aerospace etc.

2, Metal parts

Material: aluminium (6061, 7075, A380 etc), stainless steel (SS304, SS316), carbon steel, brass, zinc, etc.
Special specification available depend on different material and requirement: heat treatment to different hardness/strength, rust-resistant, high precision,
Sizes: All size and thickness available.
Process: Machining, casting, die casting, punching/stamping, extrusion, welding, laser cutting (some of the processes are outsourcing from our existed partners).
Surface finish: polished (high polish, mirror polish), smooth, blasting, vibrating, anodizing (standard o hard anodizing), painting, powder coating, blackening, etc.
Application: household commodities, electronics, car parts OME & Performance, motorcycles, bikes, machinery parts, hospital, cosmetics, Military and Aerospace etc.

3, Assembly service

We have assembly line and assembly workers in our workshop.
We making plastic and metal parts, and we sourcing some accessories if needed like hardwares (different kind of screws, bolts & nuts), wires/harness, switches, LED bulbs, batteries, motors, magnets, bearings, glue or double sided stickers, sticking foam, color boxes, printing etc, and assemble them with the plastic and metal parts which we made in our workshops.

4, Car OEM parts & Performance/racing parts

Above products are made in our own workshops.
Some parts made by our partners (related companies): like ultrasonic machines, magnets etc. SV are authorized to sell and export to overseas market. SV also sources products for our clients if needed (as a one stop service to save our client's time, cost & risks).

Core competitiveness & Features

1, Good quality & good quality consistancy & good pricing.
70% of our manufactured products are sold to European and North American market, 10% to other developed countries like Australia, Singapore, Japan etc.
We following ISO quality control system.

2, High credibility & high responsibility.
Management willing to spend more cost or undertake loss to maintain long-time partnership with our clients, this philosophy already deep in everyone's mind in our company (management, sales, engineers, workers etc).

3, Good communication, international/global/westenized vision.
Our sales are only employed if they have got high level English language certificate;
Since most of products are exporting to European and North American market, our team (management, sales, engineers, workshop workers) have a very good understanding on European & North American market's requirement.

4, Professional in manufacturing, handling export procedures and shipment.
We have several engineers has over 20 years experience in product development & manufacturing.
Our sales manager has over 15 years experience in handling exporting projects.

5, Offering one stop service for product development, manufacturing and assembly.
We have purchase dept to source the accessories needed for assembly in our workshop, like color boxes, printing, screws, electronic parts, motors, batteries, magnets, stickers or other parts which we donot make ourselves but needed by our clients.

6, Enjoys very high ratings from our clients.
See below link ratings from our European and North American clients:
http://www.auto-sinovision.com/news/153.htm

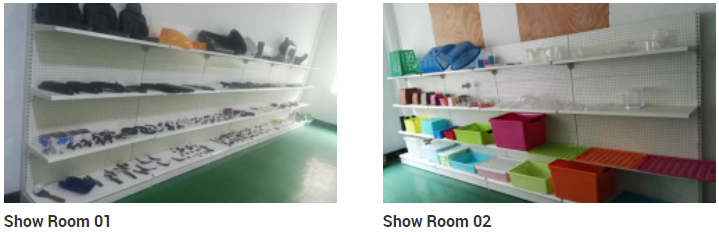

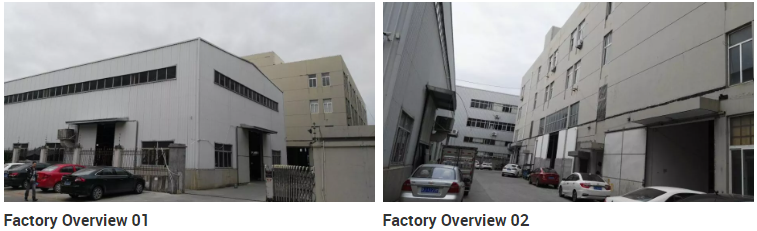

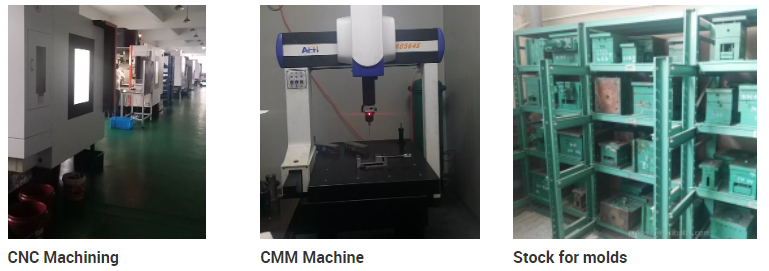

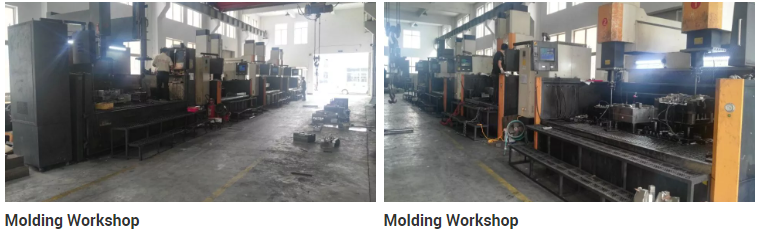

Workshops & facilities
